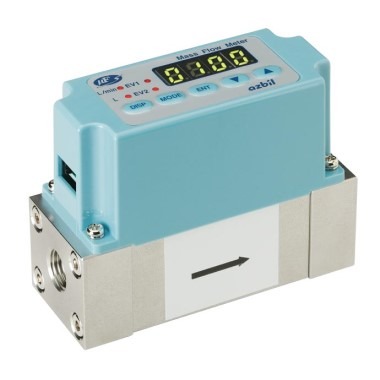

High speed 2 ms response Very low age deterioration High repeatability Symmetric structure measures reverse flow as well. Wide 300 : 1 range Mass flow measurement withoutthe need to compensate forchanges in temperature and pressure Proven reliability in 4.5 Million actual applications

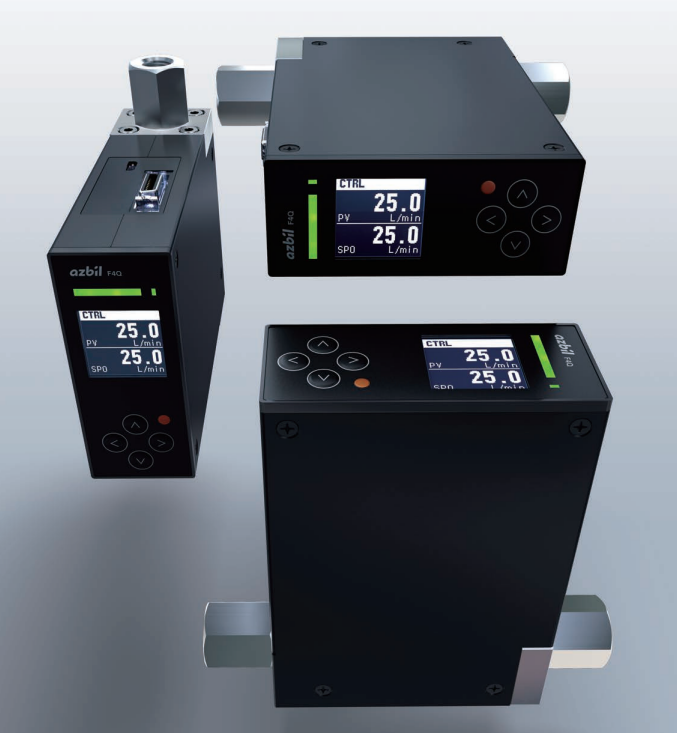

High-speed response, low pressure loss, high accuracy, and a wealth of functions Do not use the product for gas that is within its explosive limits. Doing so may result in an explosion If an abnormality in the controller is likely to result in damage, an appropriate redundant design should be used. If there is a possibility of foreign matter entering the device, install an upstream filter, strainer, or mist trap capable of eliminating foreign matter 0.1 μm or greater in diameter, and be sure to periodically inspect and replace the filter When the device is used to control the air-to-fuel ratio of a burner, implement measures in the instrumentation to prevent backfires from occurring and to prevent a backfire from affecting the device if one does occur. Increased pressure or flames in the piping due to a backfire from a burner can cause device failure

Robust reliable oxygen probe also for most difficult applications like high temperatures and high carbon levels consistently modular design Maintenance by the manufacturer but also by the user self possible low cost of ownership based on long lifespan mechanical cleaning mechanism to minimize drift and increase the life time between maintenance Supplied with test certificate for both new probe and probe after maintenance

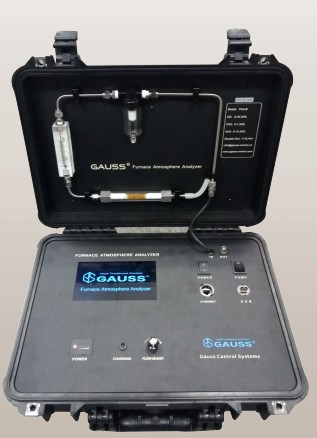

Measurement of CO / CO2 / CH4 content, calculation of carbon potential Measurement of different atmospheres: - Endo gas - Nitrogen/Methanol - dissociated Methanol - Supercarb - Sintering– and annealing atmospheres Scale: CO: 0-35.00%; CO2: 0-2.00%; CH4: 0-15% (other possible) Accuracy: CO: ±0.35% ; CO2: ±0.01%; CH4: ±0.15% three level filters to insure sample gas quality Comfortable 7' touch display

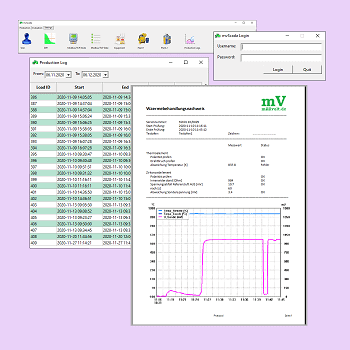

Process Control Software for Heat Treatment Plant Visualization, Process Documentation and Alarm Handling. Any number of furnaces and furnace lines can be connected. Based on a modern open source database system. Consists of server components for field communication, process management, system control and connection to higher-level systems and operating software. Runs under MS Windows, Linux and Mac OS User management for the activation of functions, login with user name and password.

with C level calculation with online carbon diffusion calculation with KN / KC / KO calculation with dew point calculation Sensor module for DIN rail mounting Available in different versions: - As a module for connecting an oxygen probe - for carburizing processes with C-level - calculation and carbon online diffusion calculation with target size control - for gas nitriding and nitrocarburizing processes with KN / KC / KO calculation - for annealing processes with dew point calculation (down to -120 ° C) Supply 24V DC, max. 100mA Easy integration into any automation environment possible

Measurement principle: Thermal Conductivity Measurement block temperature: 100 °C to avoid Ammonium Carbonate Precipitation and Condensation Measurement range: 0 … 100 % H2:N2 Accuracy: +/- 0.5 % of measurement +/- 0.25 % of end value independent of ambient temperature influence (heated measuring electronics)

Oxygen probe for determining nitriding and nitrocarburizing atmospheres as a supplement to Hydrogen sensor H2S and the sensor module SM01 Vacuum-tight design, suitable for evacuatable furnaces Supplied with test certificate both for new device and after maintenance In different lengths between 500mm and 900mm available
